Customization 3 Axles 80t Lowbed Lowboy Low Flatbed Loader Drop Deck Trailer Tread 1820mm

Tread : 1820mm

Grade : Heavy Duty

Types of Suspension Systems : Trailing Arm Type

Shape : Flatbed

Axle Number : 2.3

Tire Number : 12

Self-dumping : Not Self-dumping

ABS Anti-lock Braking System : No ABS Anti-lock Braking System

Material : Iron

Condition : New

Tire : 12r22.5

Landing Leg : 28t, Two Speed, Manual

Axle : 13t Axle

Size : 13500X3000X1550 mm

Product Name : Low Bed Semi Trailer

Name : Semi Trailer

Transport Package : Container. Bulk Ship. RO-RO

Specification : Please consult customer service

Trademark : Jin Rui

Origin : Liangshan, Shandong Province, China

HS Code : 8716399000

Supply Ability : 500 Set/Sets Per Month

Customization : Available

After-sales Service : 2 Yearplease Consult Customer Service

Warranty : 2 Year

Place of Origin : China

Delivery Time : Peak Season Lead Time: one month, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P

Contact Now

Customization 3 Axles 80t Lowbed Lowboy Low Flatbed Loader Drop Deck Trailer Tread 1820mm

Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name	2 axles lowbed semi trailer	3 axles lowbed semi trailer	4 axles lowbed semi trailer
Size(mm)	1250030001100	1300030001100	1400030001100
Payload	40000KG	60000KG	80000KG
Plate	4mm checked plate	4mm checked plate	5mm checked plate
Axles	2 * 13ton capacity	3 * 13ton capacity	4 * 13ton capacity
	(Brand optional)	(Brand optional)	(Brand optional)
Ladder	Hydraulic ladder or Mechanical spring ladder
Main beam	Height:500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm
	Material is Q345B Steel.
Side beam	250mm I beam; 20mm channel steel ( Material is Q235steel ).
Bottom Platform	4mm thickness diamond steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
	(specially intended for overseas markets)
Tire	12R22.5 / 11.00R20 8pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin	2''/3.5'' bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Accessory	One tooling box with a set of standard trailer tool
Painting	1.Sand blasting processing clean rust.
	2.Coat of anticorrosive primer.
	3.Coats of finish urethane paint.
	4.Color as customer choice.

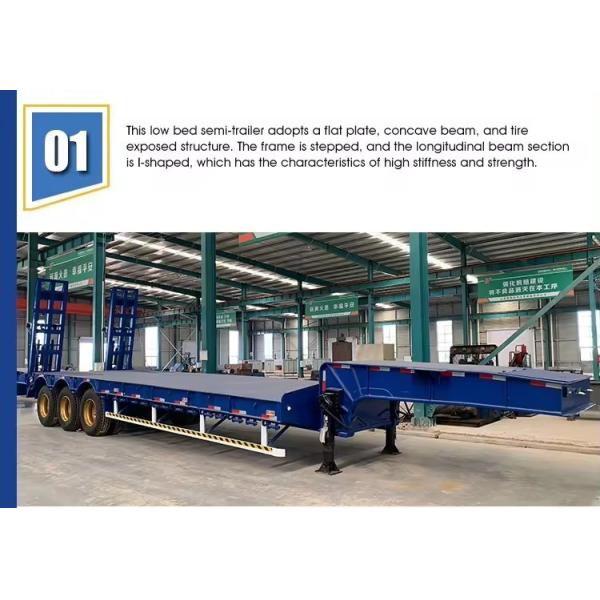

Other Descriptions	The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
	transportation.

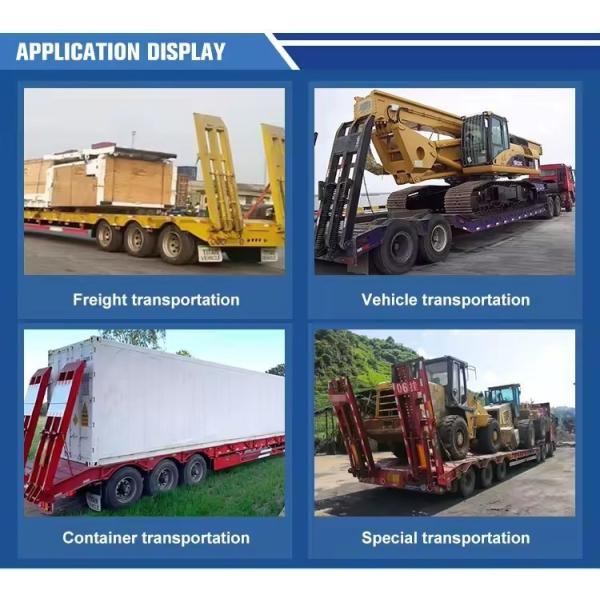

Usage	It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
	power plant equipment or machine, and all sorts of steel products.
Other Specifications	It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
	belong to optional components), with the overall height of 1710 mm.
Remark	We can design model according to client's requirement

Liangshan Hongxiang Vehicle Manufacturing Co., Ltd. is located at the foot of the famous waterside Liangshan Mountain, close to the 220 National Road and Beijing-Kowloon Railway, the scenery is pleasant and the traffic is very convenient.

The company has a large number of professional production, technical personnel. Advanced production equipment, sophisticated technology, complete testing equipment. Our company is a set of production, scientific research, sales in one of the professional enterprises. The products reach or exceed the performance indicators of other similar products in China. Products mainly include: Various series of container transport vehicles, semi-trailer, van, full trailer, Shanghai 50, Tianjin 60, Dongfang Red 1000 full trailer, and undertake special vehicle modification, design business.

We insist on high-quality products to win the market, adhere to the sincere service to return customers, our pursuit is first-class equipment, first-class management, first-class technology, first-class products. We always adhere to the quality, low price, contract, keep faith, product implementation of "three guarantees", timely delivery, thoughtful service business purposes. Every step of development, the first thought is the user, we rely on the quality of survival, to the letter of development!
